- 8 Ohm and 4 Ohm Stable 70V Class D amp with Crown ultra-efficient drive Core technology
- Separate 4 Inputs with separate volume controller
- DJ Rack Mount Amplifier, LCD displays volume in dB per channel and operating temperature, 2U rack space

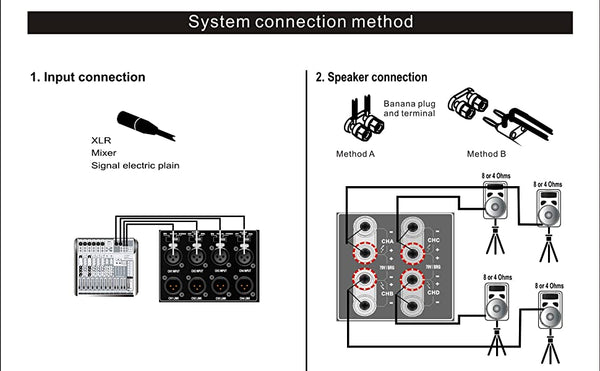

- Input: XLR (x4), ; output: speaker (x4) Input Connectors 3-pin XLR, balanced signal input
- Out Power ( 8Ω ) 300 W*4 Frequency Response 20Hz - 20KHz (+/-3dB)
- DIMENSIONS (W x Dx H) 483 x 257 x 88.8mm
Product Description
 |
 |
|
|---|---|---|
| TIC-D2500 | TIC-D4500 | |
| Out Power ( 8Ω ) | 300 W*2 | 300W*4 |
| Out Power ( 4Ω ) | 500W*2 | 500W*4 |
| Out Power ( 8Ω )bridg | 600W*1 | 600W*2 |
| Frequency Response | 20Hz - 20KHz (+/-3dB) | 20Hz - 20KHz (+/-3dB) |
| THD 20Hz-20kHz 8Ω | <0.05% | <0.05% |
| Noise | >95dB | >95dB |
| Slew Rate | 40V/uS | 40V/uS |
| Damping Factor | >300 | >300 |
| INPUT SENSITIVITY | 1.2V | 1.2V |
| Input Impedance (Ω) | 20K Ohm (balanced) | 20K Ohm (balanced) |
|
|
|
|
|
|---|---|---|---|
|
|
|
|
|
